My own installation style has always been a silly black box (accessories can save provinces and provinces), but as the only "computer expert" in my relatives, I also need to adapt to different tastes. This time I try light pollution again. Configuration without a brain, for everyone to make a reference.
First family portrait:
The configuration is:
On the card:
Install the first step: first on the CPU, install the radiator base, the motherboard is Gigabyte's B150M-D3V, this should be the largest motherboard shipped Gigabyte. PS: Kyushu Fengshen's radiator fasteners are simply anti-human, but the base is still okay.
This motherboard supports M.2 interface, but unfortunately it only supports 2133 memory, wasting my 2400 memory.
The CPU is a flake, and this is much more affordable than buying a box in Jingdong. The local channel gives a 33 month warranty.
Memory bar: Infinera's memory, DDR4 8G 2400, timing is a bit ugly, but also prices. . .
The power source selected was HuntKey. At the time, it was for the sake of concessions. There was no room for choice. This JUMPER used 450B, and it must have been the same.
Hangjia also returned the plastic packaging to avoid second-hand suspicion.
Storage chose the combination of Toshiba's 120G+1T mechanical disk, originally intended to buy A-DATA SP900, the results did not offer, and gave up decisively.
Three Antec fans were added, but workmanship was available, but there was no indication of the direction of the wind (the position can be judged from the keel, but in order to prevent mistakes, electricity tried it), the four corners were made of rubber material to reduce the vibration Conduction, 19.9 yuan is also considered more value.
Enge H440 chassis: This is my brother's own choice of the chassis, I am relatively reeling, Nge Zei these brands basically do not touch, but the customer is God, focused on introducing this chassis:
I am a person, but there is no way to pull out the chassis from the cardboard box. The material used in this fuselage is really guaranteed. The spirit machine will reverse the paper box and allow the chassis to slide out.
Paint is good, feel texture
The layout behind it is also quite regular. The fan is very big and he has a 14cm fan.
This screw feels general, and it is tight, twisting and turning off the white paint
Remove the power shelf and screws

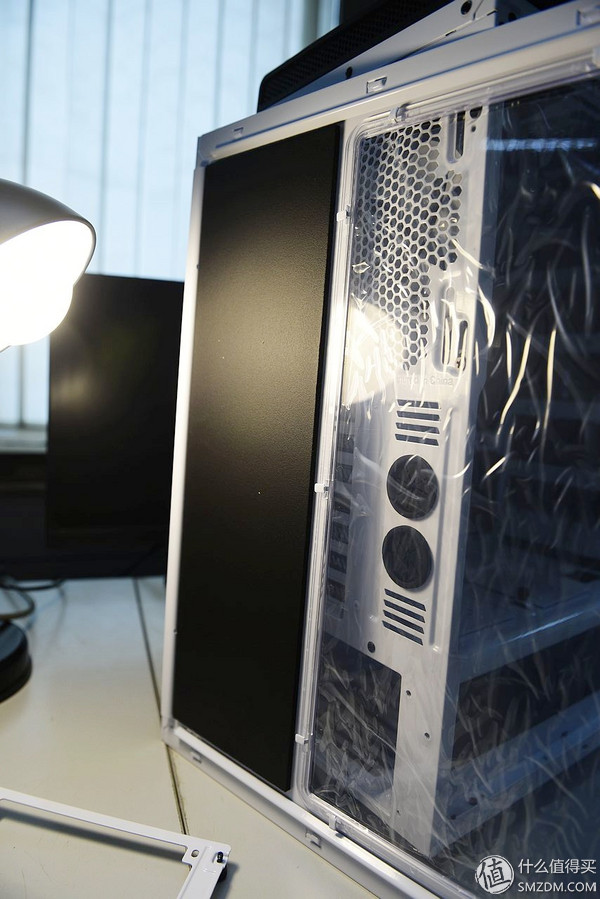

The side of the back of the Aggreko back, there is a layer of sponge to absorb vibration and noise, feel very good, very thoughtful design.
There is a whole sponge on the side that is not side-to-side, not bad.
Remove the top plastic cover and three fan positions are revealed
Front dual USB3.0 (praise), this board works in general, but better than home made some brands or better.
Install the fan, I installed two, mainly through the side can see two, save one. . .
Put the power back into place. This power is hidden inside the power box and cannot be seen outside.
The fan's control circuit looks great.
Let's take a look at the line first and one line will go back (I hate the back line first, the strapping band)
When I was preparing to install the motherboard, there was a problem. My board was relatively small. The original copper posts were not in the right place and I could not protect the motherboard. I tried to move the positions of the two copper posts and the result was slippery. There is only one pillar of copper in the attachment bag. I can only try it again for another one. This time it is OK.
There are soft rubber seals at the outlets and they look beautiful.
Unplug the graphics card ready to install, do not Tucao my 950 video card, there are three reasons: 1, the main home has budget control. 2, the installation time is early August, many cards are out of stock, the new card can not find the car. 3, this card looks relatively sturdy and can bring a certain amount of mystery bonus.
Look at the backboard, well, feel that this price is ok (930 oceans)
Since the video card is very long, you need to remove two hard disk bits so that you can install it.
Semi-finished products, there is no twist line
In other words, this accessory kit was only found when I got to the hard drive. The reason is that this box looks too easy to hide in the white host. I was still thinking that the expensive chassis wouldn't even be delivered. !
Install the hard drive, I put the solid state here and hide it.
Complete form here!
Turn off the lights again!
Effect when turning on the lights!
Lu Master Entertainment Run points:
Chess, as always, defies the act of squeezing toothpaste
Configuration table
Lu master entertainment run points, individuals do not pay attention to this, pay more attention to the user experience
to sum up: Well, there is not much to say about configuration, or what kind of old, inter innovation, CPU outrageous, memory prices, hard drive prices continue to decline, the motherboard continues to shrink. In this regard, I am more looking forward to 1060 graphics card, for my lack of energy to play the game, but also no money for the people, 1060 is the best choice, and quickly spread a lot of goods.
Also talk about this chassis:
Advantages: Good workmanship, good lacquer finish, large size, sufficient materials, and high-end atmosphere. When you eat melons, people will know that they are good computers.
Disadvantages: expensive, heavy weight, details need to be improved, especially the quality of copper pillars and screws, accessories box is too subtle, the scope of the side penetration is relatively small.
The above is my second light pollution operation. Ladies and gentlemen, if you think this article is helpful, please don’t hesitate to pay a reward. Thank you!
